> Stainless Steel Cover Of Machine.
Product Details:| Filing Type | Cup Filler |
| Sealing Type | center Sealing |
| Usage/Application | Powder |
| Material | SS Covering |
| Capacity | 500-1000 Pouch Per Hour |
| Packaging Material | plastic Pouch |
| Automation Grade | Automatic |
| Pouch Capacity | 200-400 Grams |
| Brand | Patel Packaging Solution |
SPECIFICATION:-
|
MACHINE |

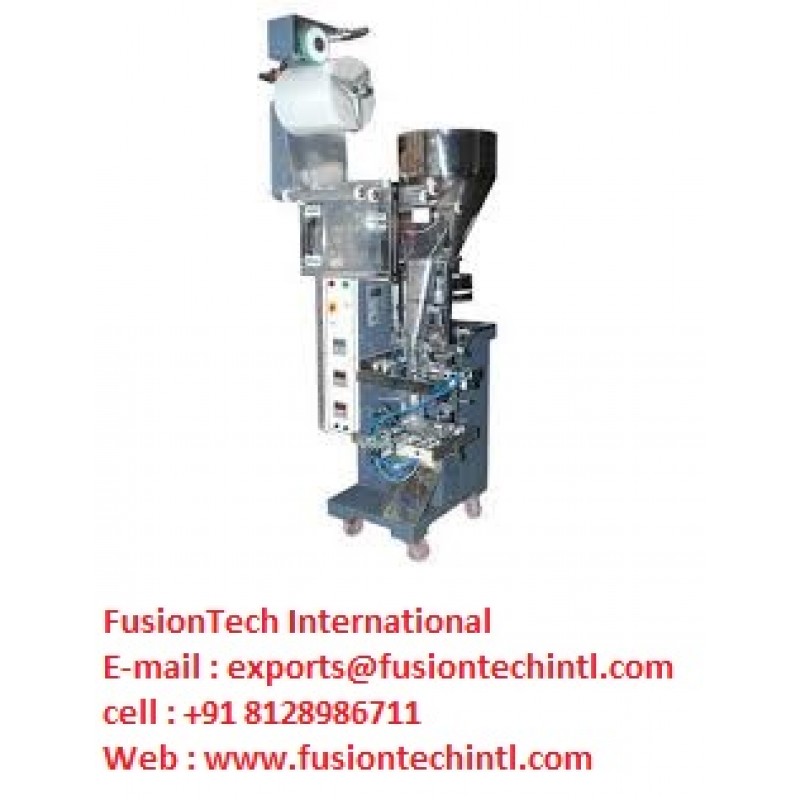

Semi Pneumatic Automatic Pouch Packing Machine |
|
FILLING SIZES |
100gm |
|
OUT PUT |
20 To 25 Pouch Per Min |
|
TYPE OF SEALING |
Central Sealing |
|
POWER CONNECTION |
single Phase |
|
POWER REQUIREMENT |
1 Hp / Heater - 2 X 125W , 2 X 450W |
|
FILLING MATERIAL CONTACT PARTS |
stainless Steel |
|
MACHINE MAIN MOTOR |
1/2 Hp |
|
MACHINE DIMENSION |
750 X 550 X 1800 Mm ( L X W X H ) |
|
MACHINE WT |
300 TO 350 Kg |
|
OPTIONAL |
Batch Coding, Nitrogen Flushing |
SPECIAL FEATURES:
· Fully Plc Base Machine
· With Pneumatic Cutting
· Simplified Operation And Maintenance, Length Can Automatic Adjust.
· Fill Volume Can Be Changed With Changeable Cups.
· Sensitive Photo Electric Eye Registration System Accurately Positions The Printed Packing Material.
· All Covering Contact Parts Made Of Stainless Steel / Acrylic
· Equipped With Automatic Pouch Counter To Calculate And Record The Out Production.
· With Automatic 6/8/10/12 Pouch Raw Cutting System
> Bucket And Screw Feed Elevator
> Gas Flushing Lubricant Pump.
> Automatic Lubrication Pump.
